The Complete Guide to Tie Rods in Construction: What UAE Hardware Buyers & Exporters Must Know -

hardware export: Tie Rods in Construction – What UAE Buyers Must Know

Tie rods play a critical role in construction, offering structural integrity, load distribution, and dimensional stability. For UAE hardware merchants, exporters, and project managers, understanding tie rod specifications, sourcing, and compliance is essential for quality projects and seamless business operations.

1. What Exactly Is a Tie Rod? 🔩

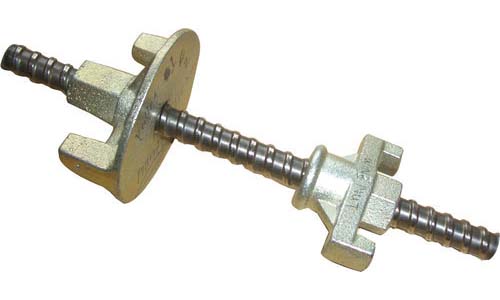

A tie rod is a slender, tension-bearing component—typically a steel bar with threaded ends—designed to resist tensile loads. In construction applications, tie rods are used to hold elements together, prevent separation or movement, and maintain structural alignment. In concrete formwork, temporary support systems, facades, and heavy-duty scaffolding, they secure form panels, beams, walls, and foundation elements.

2. Key Functions in Construction

Tension Support: Holds construction elements under tension to ensure tight fit and alignment.
Formwork Stability: Keeps formwork panels in axis, preventing bowing and movement during concrete pour.
Structural Bracing: Enhances structural rigidity for beams, trusses, and scaffolding.
Load Distribution: Spreads tensile forces evenly to avoid stress concentration.

3. Types of Tie Rods Used in UAE Construction

Standard Threaded Tie Rods: Common in formwork, usually galvanized or zinc-plated.
Swivel-end Tie Rods: With articulated ends for angled applications.
Forged Eye Bolt Tie Rods: For lifting and pre-stressing tasks.
Adjustable Turnbuckle Tie Rod Assemblies: Include nuts or turnbuckles for tension adjustment—ideal for scaffolding and bridge works.

4. Material Specifications & Grades

Carbon Steel (ASTM A36 / DIN 15Mn): Economical and weldable for general purposes.
High-strength Alloy Steel (ASTM A325 / A490): For heavy-duty tension applications.
Stainless Steel (AISI 304 / 316): Corrosion-resistant for coastal and infrastructure projects.
Surface Coatings: Galvanizing (hot-dip or electro), zinc plating, epoxy, or polymer coating for UAE’s humid & marine environment.

5. Industry Standards & Compliance

Adherence to international standards ensures safety and market acceptance:

ASTM A307 & F1554: Standard and high-strength carbon steel rods.
BS 3692 / ISO 4014/4017: Metric steel threaded rods.
EN 10204 3.1 / 2.2: For material inspection certificates.
ISO 9001 Quality Management Systems: For manufacturing consistency.
Dubai Municipality / UAE Civil Defence Approvals: Certain projects may require local approval marks.

6. Dimensions, Thread Size & Tolerances

Diameter Range: 8 mm up to 50 mm+.
Thread Standards: Metric (M6–M50), UNC/UNF. Ensure compliance with ISO 965-2 or ASME B1.1.
Length Options: Stock lengths (1 m, 2 m, 3 m) or cut-to-size.
Tolerance Insight: Ensure mechanical fit and tension control—e.g., ISO 965 tolerances on thread pitch and diameter.

7. Sourcing & Export Tips for UAE Markets

Local vs. International Suppliers:
- Domestic mills (e.g., in India, Turkey) offer faster delivery.
- International (e.g., EU, U.S.) may offer premium grades.
Specifications Verification:
- Require mill test certificates (EN 10204/3.1).
- Perform third-party lab tests or inspections.
Sample First, Bulk Later:
- Use pilot orders to ensure compatibility.
- Warranty terms: Check machining, coating adhesion, and inspections.
Shipping & Documentation:
- Understand Incoterms (CIF, EXW, DDP).
- Ensure compliance with UAE customs and labeling laws.
Export Opportunities:
- UAE-based buyers can re-export to GCC, East Africa, South Asia—leverage market reach.
- Grow ROI through value-added services: pre-cutting, thread milling, finishing.

8. Common Mistakes to Avoid

Ignoring Quality Certifications: Non-compliant tie rods can lead to structural failure.
Overlooking Coating Requirements: Standard zinc plating may fail in marine zones.
Skipping Pilot Tests: Differences in thread quality or coating can impact fitting.
Poor Supplier Vetting: Reputable manufacturers should provide documentation and references.

9. Best Practices for Inventory & Distribution

Stock Smartly: Keep fast-moving sizes on hand: M12, M16, M20 in carbon steel with zinc.
Maintain Traceability: Label each batch with grade, size, mill certificate number.
Customer Education: Provide cut-sheets, installation torque guides, and pre-purchase inspection checklists.
Value-added Services: Offer cutting, threading, galvanizing, or bundle packaging.

10. Recommended Trusted Supplier Resources

Here’s a helpful external resource for best practice standards and material grades:

The European Steel Association (EUROFER) provides technical guidelines relevant across GCC and UAE construction markets.
External link: EUROFER Technical Standards

11. Quality Testing & On-site Best Practices

Physical Tests: Tensile testing (yield, ultimate strength), coating thickness measurement, and thread profile checks.
Visual & Microscopic Inspection: Check for cracks, pitting, and mill scale.
Formwork Torque Control: Follow manufacturer torque specifications to prevent overloading.
Periodic Retensioning: In long-duration formwork, check thread seating regularly.

12. Case Use: UAE Project Example

In large-scale formwork for a 50-story residential tower in Dubai Marina, tie rods were specified as galvanized carbon steel M20 × 3 m with EN 10204/3.1 certification. On-site inspections—measuring coating thickness and thread integrity—ensured zero formwork blowouts or panel misalignment throughout the concrete pours.

13. The Export Angle: Best Practices for UAE-Based Suppliers

Documentation Chain: Provide Quality Certificates, Packing Lists, CoA, Export Licenses promptly.
Customs Tariffs: Familiarize with UAE’s Harmonized System (HS Code: 731815) for threaded bars and rods.
Free Zones vs. Mainland: Export duties differ depending on whether distribution is from JAFZA, DMCC, or mainland.
Trade Finance: Use letters of credit, or escrow instruments for smooth transactions.

14. Sustainability & Lifecycle Considerations

Reusability: Inspect and re-galvanize reused rods to maintain fit and corrosion resistance.
Recycling: Carbon steel rods are fully recyclable—promote green credentials.
Lead Time Efficiency: Kept in bonded warehouses to respond quickly to urgent orders.

Final Word

Tie rods may be simple components, but for UAE hardware exporters, construction buyers, and formwork contractors, getting them right is critical. From ensuring standard compliance and corrosion protection to smart inventory and export readiness—you’ll safeguard construction quality, reduce defects, and build a reputation for reliability.

By sticking to the guidance above, your hardware business can confidently supply or source top-quality tie rods, tap into the export potential of UAE free zones, and back projects with technical assurance. Ready to elevate your offerings? Start by vetting vendors, validating samples, and aligning your product range with UAE market demands.
