Ultimate Guide: How to Align Centres Correctly for Precision Machining in Construction

Are you tired of inaccuracies in your machining projects that lead to wasted materials and time? Precision is non-negotiable in the construction and hardware sectors, where even a minor misalignment can compromise structural integrity and project timelines. Proper centre alignment is the cornerstone of achieving this precision, ensuring that machining operations like turning, drilling, and milling produce components that meet exact specifications. This guide delves into the essential techniques and best practices for aligning centres correctly, tailored for hardware shopkeepers and construction professionals in the UAE and beyond.

In the realm of hardware and export, precision machining tools are critical for producing high-quality components used in construction. From bolts and fittings to custom parts, accurate centre alignment ensures that every piece functions as intended, enhancing safety and efficiency on-site. By mastering these alignment techniques, you can reduce errors, save costs, and improve overall project outcomes.

Also read – Ultimate Guide to the Best Boring Heads for Lathe and Milling Machines in Dubai: Top Brands & Supplier Tips

Understanding Centre Alignment and Its Importance

Centre alignment refers to the process of ensuring that the workpiece and tool centres are perfectly coaxial in machining equipment like lathes or milling machines. Misalignment can cause issues such as uneven wear, vibration, and out-of-tolerance parts, leading to failures in construction applications. For instance, in the UAE’s booming construction landscape, where projects demand high precision for skyscrapers and infrastructure, proper alignment is vital for components like steel beams and mechanical parts. According to industry standards, a misalignment of just 0.001 inches can result in a 10% loss in tool life and accuracy, emphasizing the need for meticulous setup.

Step-by-Step Guide to Aligning Centres

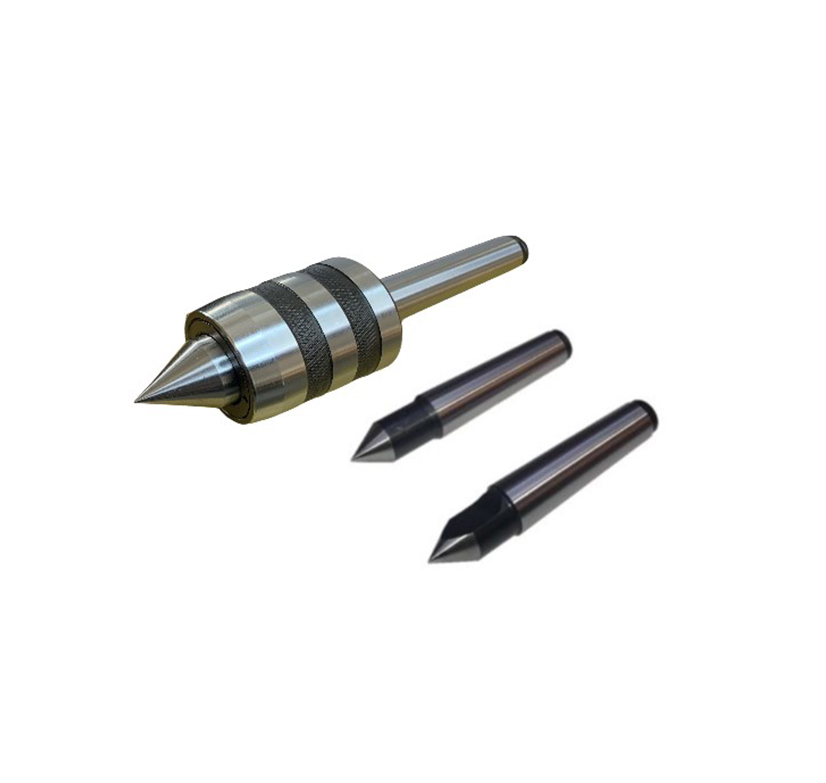

To align centres correctly, start by cleaning all components—remove any debris from the machine spindle, centres, and workpiece. Use a dial indicator mounted on the tool post to measure runout; adjust the tailstock or workpiece until the indicator reads minimal deviation (ideally less than 0.0005 inches). For live centres, ensure they are properly lubricated and seated. In construction machining, where materials like steel and aluminum are common, thermal expansion can affect alignment; always check alignment after the machine has warmed up. Regularly calibrate equipment and train operators on these procedures to maintain consistency.

Common Mistakes to Avoid

Avoid rushing the alignment process—skipping steps leads to errors. Never assume a centre is true without verification; always use measuring tools. Ignoring environmental factors like temperature changes in UAE’s climate can cause materials to expand, misaligning centres. Also, using worn-out centres or tools amplifies inaccuracies. Invest in quality equipment and routine maintenance to prevent these issues.

How Centres Are Made: From Raw Material to Finished Product

Raw Material(s): High-carbon steel or alloy steel is commonly used for centres due to its durability and hardness. For precision applications, materials like tungsten carbide are employed for enhanced wear resistance.

Manufacturing Process: The production begins with forging or casting the raw material into a rough shape. This is followed by machining on lathes to achieve precise dimensions. Heat treatment, such as quenching and tempering, is applied to increase hardness and toughness. Grinding ensures a smooth, accurate surface finish. Finally, coating processes like nitriding or chrome plating may be used to improve corrosion resistance, essential for UAE’s humid coastal conditions.

Key Properties Derived from Manufacturing: The heat treatment imparts high hardness (Key Material Property 1), ensuring the centre resists deformation under load. Precision grinding provides dimensional accuracy (Key Material Property 2), critical for alignment. Coatings enhance corrosion resistance, prolonging lifespan in harsh environments.

Quality Control: Centers undergo rigorous checks, including dimensional accuracy measurements with micrometers, hardness testing using Rockwell scales, and visual inspections for defects. They must adhere to standards like ISO 9001 to ensure reliability.

Essential Uses in the UAE Construction Landscape

Primary Application(s): In UAE construction, precision-machined centres are vital for producing components like rebar connectors, anchor bolts, and custom fittings used in high-rise buildings and infrastructure projects. They ensure that machined parts fit perfectly, reducing assembly time and enhancing structural integrity. For example, in the fabrication of steel frameworks for projects like Burj Khalifa, accurate centre alignment was crucial for milling precise joints that withstand extreme loads.
