Anchor Bolts for UAE Projects – Best Types for Concrete
In hardware and export, choosing the right anchor bolts is critical. From securing steel columns to mounting equipment, anchor bolts anchor structural elements firmly into concrete. For UAE construction—with its high-rise towers, industrial plants, and seismic considerations—selecting the correct anchor type ensures durability, safety, and compliance.
What Are Anchor Bolts & Why They Matter
Anchor bolts are fasteners embedded in concrete to attach structural or nonstructural components. Their core functions in construction include:
- Resisting tension and shear loads
- Providing load-transfer between steel, walls, façade systems, equipment, and foundations SJS Enersol+4Machine Manufacturing Shop+4concretecivil.com+4Reddit+6Wikipedia+6bobfast.com+6
They serve as a foundational link between poured concrete and mounted elements.
Main Types of Anchor Bolts in UAE Concrete Projects
Based on global standards adapted locally, UAE projects typically use:
- Cast‑in‑place bolts (L‑ or J‑shaped)
- Embedded during concrete pour; do not require post-installation holes Wikipedia+10concretecivil.com+10eshaji.in+10bobfast.com+2eshaji.in+2The Spruce+2

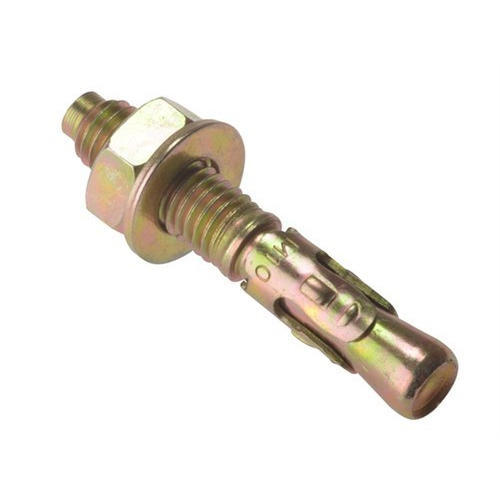

- Mechanical Expansion Anchors (Wedge, Sleeve, Drop-in)
- Installed after pouring, expanding to grip hole walls Machine Manufacturing Shop+9concretecivil.com+9jm-fastener.com+9Machine Manufacturing Shop+4Machine Manufacturing Shop+4Medium+4
- Chemical (Adhesive) Anchors
- Use epoxy or resin to bond rods in drilled holes; ideal for high-load and seismic zones Wikipedia+15Machine Manufacturing Shop+15The Spruce+15
- Headed/Plated Dowels
- Have a plate or head for mechanical interlock; used in high-tension applications Machine Manufacturing Shop
How They’re Made & Quality Attributes
- Cast‑in‑place (L/J‑bolts):
Cold-forged and threaded; shaped for strong mechanical embedment concretecivil.com+8SJS Enersol+8bobfast.com+8 - Expansion anchors:
Machined from steel with sleeves designed to expand under torque; wedge pins tighten to engage sides - Chemical anchors:
Threaded rods installed in resin-filled holes; rely on cured bond strength Better Homes & Gardens+2L&T-SuFin+2jm-fastener.com+2
Key Properties Derived:
- Mechanical interlock from shape/design
- High tensile/shear strength resulting from steel grade
- Corrosion resistance via galvanizing or epoxy
- Reliability under dynamic loads, especially chemical anchors for seismic resilience eshaji.in+6Wikipedia+6Machine Manufacturing Shop+6Better Homes & Gardens+3Reddit+3Medium+3MediumWikipedia+7L&T-SuFin+7Machine Manufacturing Shop+7
Quality Control Checks:
- Tensile load testing, torque-to-yield
- Dimensional accuracy per ASTM/DIN/ISO
- Coating adhesion, embedment depth
- Adherence to ACI codes and engineering specs Reddit
Why These Matter in UAE Construction
In the UAE environment:
- High-rise towers & heavy infrastructure demand cast‑in‑place and wedge anchors
- Seismic retrofit & dynamic loading sites benefit from chemical anchors Wikipedia+5bobfast.com+5concretecivil.com+5jm-fastener.com+1Machine Manufacturing Shop+1
- Precision installations (e.g. façade panels) rely on drop-in anchors for flush finishes jm-fastener.com
- Exterior installations in coastal zones require galvanized or stainless steel for corrosion protection
Leading Anchor Bolt Suppliers in the UAE
🔧 International & Local Providers
- L&T-SuFin (Local distributor)
Carries wedge, sleeve, chemical anchor systems. Contact via notes on product standards Machine Manufacturing Shop+2Wikipedia+2Reddit+2Machine Manufacturing Shop+4L&T-SuFin+4Machine Manufacturing Shop+4 - SJS EnerSol (UAE-based reseller)
Offers L‑, J‑, headed anchor bolts in galvanized/stainless steel. Uses ISO/DIN standards. Machine Manufacturing Shop+8SJS Enersol+8Machine Manufacturing Shop+8- Address & Phone: Verified via company website
- JM Hardware (China exporter, ships to UAE)
Supplies wedge anchors, cast‑in‑place bolts, chemical anchors. Reach via listed Shanghai contact jm-fastener.com+1Reddit+1concretecivil.com+6bobfast.com+6Machine Manufacturing Shop+6
Choosing the Right Anchor: Tips for Hardware Shops & Exporters
- Match anchor to concrete application:
- High-rise framing? Cast‑in‑place, wedge anchors
- Machine base? Chemical or grouted threaded rods
- Facades? Drop‑in or sleeve anchors
- Materials & coatings matter:
Galvanized for general corrosion; stainless or epoxy-coated for coastal conditions - Certifications:
Ensure ASTM specifications (e.g. F1554 grades 36/55/105) and ACI embedment recommendations Machine Manufacturing ShopReddit+1Medium+1 - Provide installation guides:
Properly drilled hole, cleaning, torque spec, embedment depth & edge distances are critical bobfast.com - Verify supplier details:
Request physical address, landline, not just mobile; seek ISO/ASTM certification evidence
Mistakes to Avoid
- Using post-installed anchors near edges without following edge-distance rules
- Skipping hole cleaning—dust can reduce bond by up to 60% Wikipedia+1Reddit+1
- Overlooking torque or embedment specifications
- Not choosing corrosion-appropriate alloys for UAE climate
Export & Wholesale Potential
Anchor bolts are in high demand across GCC and MENA markets:
- Offer package kits (bolt, nut, washer) with torque gauge labels
- Include batch traceability & test certificates
- Ensure export documentation readiness: customs compliance, test data, packaging norms
External Resource
For detailed installation standards and embedment depth (e.g. 4×bolt diameter minimum), review the ACI 318-Code Wikipediatheconstructor.org+1Reddit+1.
Final Takeaways
Selecting the right anchor ensures structural integrity, safety, and compliance. Hardware retailers and exporters should offer:
- A range of bolt types (cast‑in, wedge, chemical, drop‑in)
- Material options (galvanized, stainless, epoxy)
- Certifications & testing records
- Clear installation guidance
This positions you as a trusted provider in UAE’s dynamic construction and export environment.
